Accessories for vibration measuring devices

The MENHIR has an extensive range of accessories and externally attachable actuators. These currently include:

Alarm beacon

Opto-acoustical alarm beacon for wired or wireless attachment

Wall Brackets

Wall brackets and assembly aids for MENHIR and sensors

Power Supply Options

  • AC/DC-Converter
  • Battery
  • Solar panel

Anti-Theft Lock

Add-on part for MENHIR

Accessories

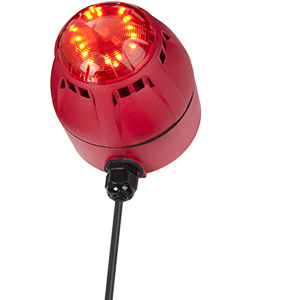

Wired Beacon

Wired connection to MENHIR Relay-Output.

In case of exceeding a defined alerting condition, the beacon light and/or horn tone is activated over a defined period.

Wireless Beacon

A wireless transmitter (433 MHz) is connected to the MENHIR Relay-Output. The receiver bacon requires a 12...24VDC or 85...260VAC power supply.

In case of matching a defined alerting condition, the beacon light and/or horn tone is activated over a defined period.

Wall Brackets

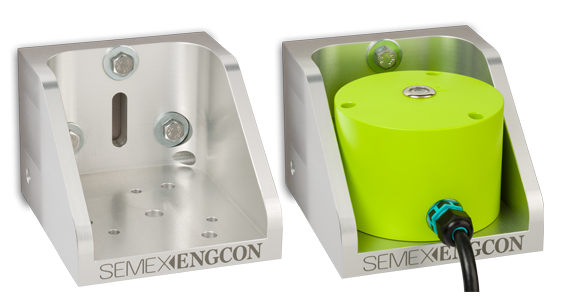

Wall Bracket for MENHIR

Stainless-steel wall bracket. MENHIR can either be bolted or braced.

Wall Bracket for SATELLITH

Aluminium wall bracket for SATELLITH sensor.

Cable Bridge

Adjustable stainless-steel bracket for cable bridges

Power supply options

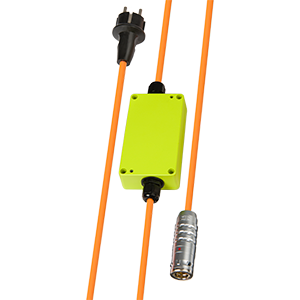

AC/DC-Converter

External AC/DC converter for powering MENHIR (always included with standard delivery)

External AC/DC-Power Supply

With integrated 12Ah battery back-up and charger.

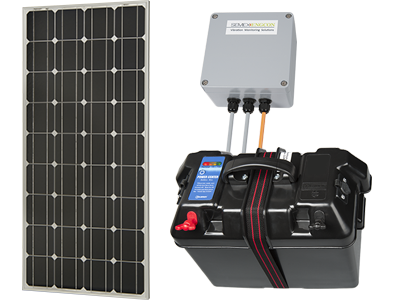

Solar panel

Solar Panel (100Wpp) with charge controller and battery box (max. 88 Ah)

Anti-Theft Lock

Mounting

Add-on part for MENHIR with screws and special mounting tool.
Lock and cable not included in delivery scope.
